FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement

FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement
FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement

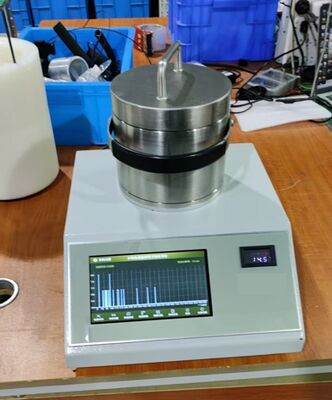

Büyük resim :  FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATEC
Sertifika: CE
Model numarası: FJ-45WF-2
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: USD5165/set - USD5840/set
Ambalaj bilgileri: Karton ambalaj kutusu
Teslim süresi: Ödemenizi aldıktan sonra 10-15 iş günü
Ödeme koşulları: Banka havalesi, Paypal
Yetenek temini: 10 takım/ay

FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement

Açıklama
Dedektör: 45mm * 70mm NaI dedektörü+Marinelli kabı Doz oranı aralığı: 0,1-20 μ Sv/h (Cs-137'ye göre)
Ölçüm Doğruluğu: % 3 ila% 6 Minimum Tespit Etkinliği: 10bq/L (CS-137'ye göre)
Ekran Birimleri:: BQ/L, BQ/Kg
Vurgulamak:

Water food radioactive detector with Marinelli cup

,

Radioactive detector for 137Cs 131I measurement

,

Non-destructive testing equipment with warranty

FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement
Key Specifications
Attribute Value
Detector 45mm * 70mm NaI detector+Marinelli cup
Dose rate range 0.1-20 μ Sv/h (relative to Cs-137)
Measurement accuracy 3% to 6%
Minimum detection activity 10Bq/L (relative to Cs-137)
Display units Bq/L, Bq/kg
Product Overview

The FJ-45WF-2 Water and Food Contamination Radioactive Detector is a monitoring instrument based on a sodium iodide (low potassium) detector. Designed to measure the specific activity of 137Cs and 131I radioactive isotopes in food and water (including various beverages), it provides rapid detection of radioactive contamination levels for households, enterprises, shopping malls, inspection and quarantine, disease control, environmental protection and other institutions.

The instrument features a highly sensitive sodium iodide scintillation crystal detector (45mm * 70mm) that delivers fast operation, accurate measurement, and high sensitivity. Its lightweight, ergonomic design includes a high-resolution LCD color display for simple operation and real-time detection capabilities.

Technical Specifications
Detector 45mm * 70mm NaI detector+Marinelli cup
Dose rate range 0.1-20 μ Sv/h (relative to Cs-137)
Adaptive density range 0.2-1.8g/cm³; Range: 10Bq/L to 10⁵Bq/L (relative to Cs-137, using a standard sample cup)
Measurement accuracy 3% to 6%
Minimum detection activity 10Bq/L (relative to Cs-137)
Measurement speed Typical time for reading 95% is 5 seconds (activity>100Bq)
Display units Bq/L, Bq/kg
Environmental temperature -20~40°C
Relative humidity Not greater than 95%
Design and Operation

The FJ-45WF-2 features a compact, integrated design that combines detectors, rechargeable batteries, electronic components, and LCD display in a single unit. Main accessories include external power adapters, instrument packaging, and user manuals.

Power System
  • Powered by built-in rechargeable battery (approximately 10 hours operation when fully charged)
  • Includes 220V/50Hz AC power adapter for charging
  • Recommended charging time: 4-6 hours
  • Battery replacement recommended after 2-3 years of normal operation
User Interface

The front panel features four buttons (left, confirm, right, and on/off) with an LCD screen displaying operational status and measurement data. Side panel includes USB communication port and external power adapter interface.

FJ-45WF-2 Water Food Radioactive Detector with Marinelli Cup for 137Cs 131I Measurement 0
