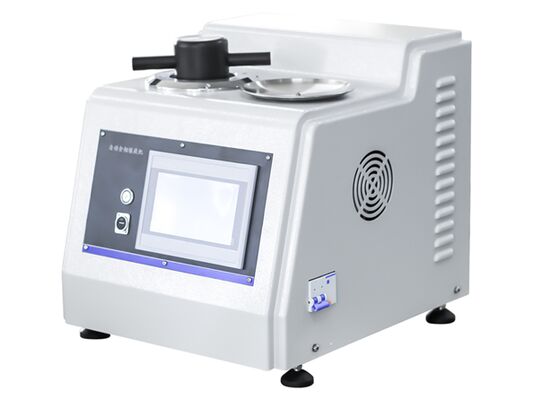

HM-M2000W Motorized Automatic Sample Mounting Press with Closed-Loop Pressure Control & Fast Heating/Cooling System

Item

specifications

The mold diameter

φ30mm (optional φ22mm, 45mm)

Heater Power

560 w

Temperature range

0 ~ 200℃ adjustable

Time range

0 ~ 30 min

Pressure mode

Automatic (motor loading)

Cooling way

Water cooling (optional chiller)

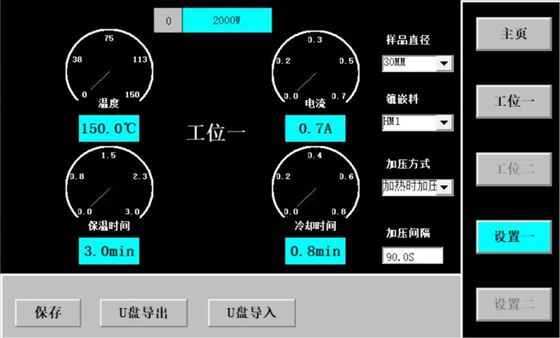

Operation and display mode

Touch screen

Mounting application

Editable mounting process library, can store 99 sets of mounting process

Program input/output

U disk

Working mode

Automatic and manual can be switched

Total power:

1000W

Power supply

AC220V 50HZ

Overall dimensions

530 * 430 * 410 mm

Weight

66Kg

Item

Quantity

Item

Quantity

Mounting press (HM1 black)

1 bottle (500 g)

Throat hoop (13-19)

1

Inlet pipe

1

Teflon tape

Volume 1

Outlet pipe

1

Spoon

1

Funnel 1.5 cm

1

Product specification

1

Product certificate

1

HM1

suitable for ordinary sample making

Material: phenolic resin

Color: black, red, green

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM2

suitable for conducting samples, such as electron microscope, electropolishing

Material: phenolic resin

Color: Black

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM3

suitable for samples with high edge requirements: very low shrinkage, tight sample bonding, high hardness, good wear resistance

Material: phenolic resin

Color: Black

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM4

suitable for powder metallurgy and other interstitial samples

Material: phenolic resin

Color: Red

Packing: 500 g/kg / 2 and 4 kg / 18 kg

HM5

suitable for samples with requirements on location, size, depth of layer, etc

Material: Acrylic resin

Color: Transparent

Packing: 500 g / 3 kg / 10 kg

HM6

suitable for ordinary sample making

Material:

Color: White

Packing: 500 g / 4 kg / 15 kg

HM7

suitable for samples that need to be recovered and the location, size and depth of layer are required

Material: Acrylic resin

Color: Soluble and transparent

Packing: 500 g / 3 kg / 10 kg

CLIP3

The sample holder is suitable for vertical elevation of the sample to observe the profile

Material: stainless steel

Packing: 100 PCS/box

MMR

Mold release agent is suitable for sample mold release

Packaging: 420ml/ bottle

MMR2

Mold release agent is suitable for sample mold release

Packaging: 420ml/ bottle

200 ml/bottle packaging
