DR System High Performance Industrial DR X-ray High-Definition Digital Plate Detector

DR System High Performance Industrial DR X-ray High-Definition Digital Plate Detector

Features:

HUATEC HDR-4343 flat detector, is a fixed low noise static flat detector, the front panel of the detector using amorphous silicon (a-Si) material technology, the flat detector using amorphous silicon material technology, with high image quality, large dynamic range, a wide range of terminal applications. The product is designed to be fixed and has a multi-gain programmed adjustment gear, which makes it suitable for high sensitivity applications as well as large dynamic range scenarios. Based on the above characteristics, the HUATEC HDR-4343 detector can be widely suitable for medical, industrial, pet and other applications.

Amorphous silicon material itself has many advantages, compared with other material technologies, the more prominent advantages are:

Large dynamic dose range
Long radiation lifetime

Parameters:

HUATEC digital image processing and enhancement software

HUATEC image enhancement and storage system integration the most practical processing and filtering features are designed for real-time X-ray imaging systems, increasing the sensitivity of processed images by an average of 0.6% to 0.8%. With the help of high-speed Ethernet port, you can get both static and dynamic images at the same time, and save them as 8/16bit image format, and directly burn them to DVD for permanent storage, which is convenient for archiving and reviewing the detection data, and saves detection cost and archive space at the same time.

Flat plate connection and control

Gigabit net plate connection, and prompt connection state and fault

The offset/gain/bad pixel correction

The offset/gain/bad pixel correction, can choose whether overlay

According to proportion

The current frame rate
Software process

Pixel gray value display

Real-time image display and processing

Real-time image ROI fast grayscale mapping, easy to quickly observe the effective image of the region of interest

Real-time display integral noise reduction: 2/4/8 frames optional

Real-time display algorithm processing: negative/color/binarization

Real-time display of image sharpening and enhancement

Image integral acquisition: 8/16/32/64/128/256 frame stack

Continuous Video Recording: Compression format is optional

Image/video naming and name automatic sequential compilation

0-65536, 16bit gray scale adjustment

GAM/Contrast/Brightness/Threshold adjustment

Picture information mark, a number of contents can be filled

Still image processing

ROI fast gray scale mapping, easy to quickly observe the effective image of the region of interest

BMP/PNG/JPG/TIFF (8bit/16bit)/RAW/HIS/DCM file read

Grayscale/negative/pseudo-color/binarization/sharpening/enhancement algorithm processing

Magnifying glass, 1-5 times magnification observation

Image to flip

Gamma/ contrast/brightness/threshold adjustment

Dimension calibration and measurement, and can mark the required information on the picture

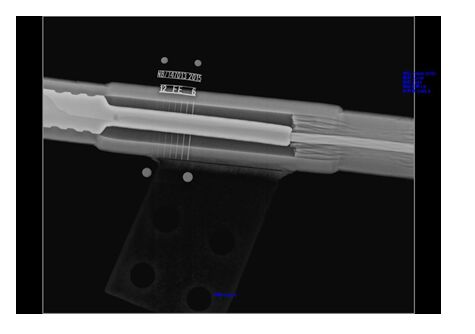

Ouble filament image quality meter automatic verification

It meets the standard requirements of NB/T 47013.11-2015 "Non-destructive Testing of Pressure Equipment X-ray Digital Imaging Testing". It can automatically verify the double-filament image quality meter and measure SNR.

Portable high frequency X-ray flaw detector

Main performance:

35℃ 300kV /3mA, 250kV /3mA conditions can be continuously exposed;

Wide input voltage range, to meet the power supply of various generators;

Light weight, strong penetration, stable performance;

More suitable for use in harsh environment, humid environment;

The operation interface is intuitive and the operation is simple.

Main technical parameters
