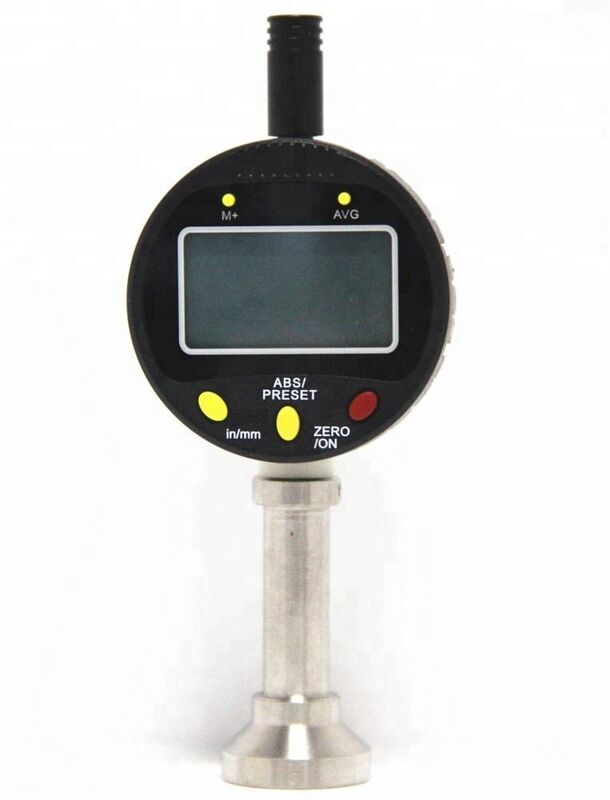

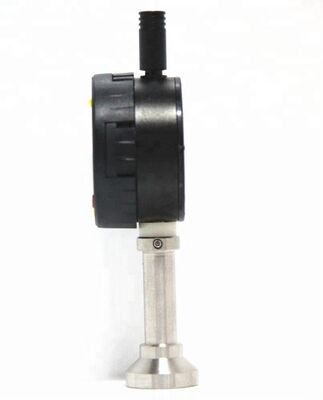

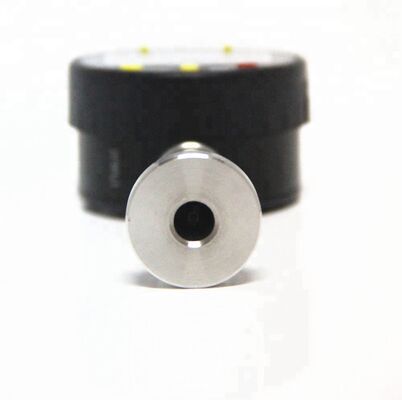

Handheld Digital Suface Roughness Tester Profile Gauge

Handheld Digital Surface Profile Gauge Surface Roughness Tester

Applications:

Enables quick assessment of surface condition prior to coating

It works on grit sand shot blasted and saw cut surfaces

The small size (42 mm diameter) of this surface profile gauge makes it easy to use and easy to balance on the surface

Its design permits accuracies equivalent to an electronic surface trace

Gives maximum peak to average valley height

Available with metric and imperial units.

This gauge can also measure the depth of pits, cracks, craters and scratches of the outer (and in some cases the inside) surfaces of steel structures, pipes and concrete

Standard delivery:

Main unit 1pc

Carrying case 1pc

Certificate 1pc

English Manual 1pc

Speficications:

Measuring Range: 0 - 6500um (0 - 0.25")

Confirm to standrad ASTM D4417B

Resolution: 0.001mm (0.00005")

Gauge face diameter: 42mm (1.65")

Power: 1.55V silver oxide battery (SR44)

Battery Life: 8 - 12 months

Working Temperature: 0 to +40C (32 to 104F)

Storage Temperature: -10 to +60C (14 to 140F)

Relative Humidity: <80%

Accuracy: +-2um

Unit: metric/imperial

Product Details:
