MG-11 Professional Fillet Weld Gauge for Welding Quality Inspection

MG-11 Professional Fillet Weld Gauge for Welding Quality Inspection

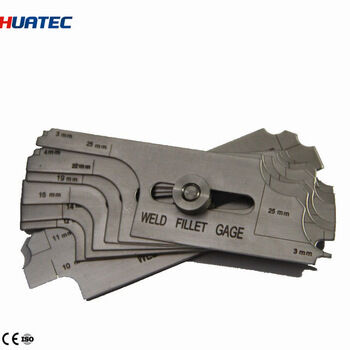

MG-11 fillet weld gauge is a professional precision measuring instrument designed for welding inspection, manufactured from high-quality stainless steel with clear and wear-resistant etched markings. It features both metric and inch dual scales, allowing direct and accurate reading of fillet weld leg length and throat thickness without manual calculation. The gauge is compact, lightweight and easy to operate, widely used for on-site welding inspection, factory quality control, welding procedure evaluation and welder skill assessment in industries such as steel structure, pressure vessel, pipeline and engineering machinery. It fully complies with common international welding inspection standards including AWS D1.1 and ISO 5817, providing reliable measurement data for welding quality control.

Function and Application:
Measure the weld leg length of fillet welds
Measure the effective throat thickness of fillet welds
Quickly determine whether the weld meets the design dimensions

Applicable to welding inspections of steel structures, pressure vessels, pipelines, ships, construction machinery, etc.
