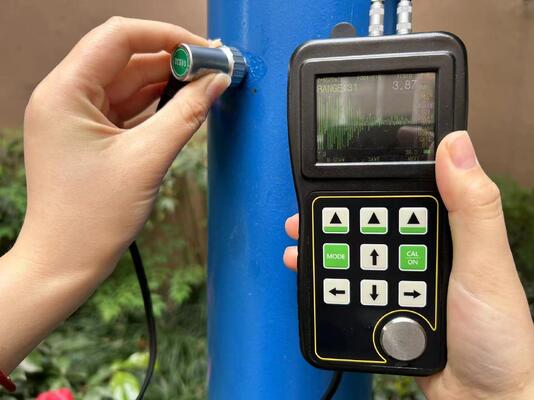

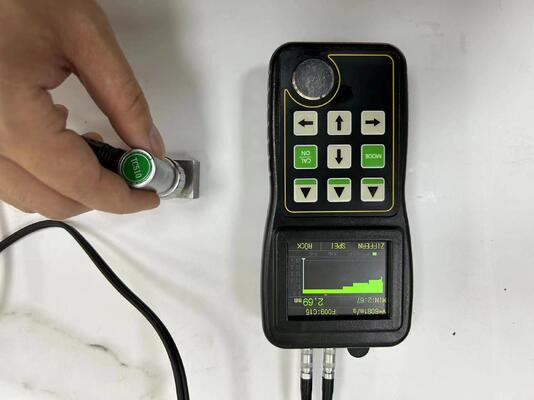

TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge

TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge
TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge

Büyük resim :  TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATEC
Sertifika: ISO,CE
Model numarası: TG-5100D
İletişim

TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge

Açıklama
Ölçüm Aralığı: 0,5 - 508 mm (0,025 - 20,00 inç) Ölçüm çözünürlüğü: 0.01 veya 0.1mm ((0.001 veya 0.01in)
birim: Milimetre veya inç Ekran Modu: Kalınlık değeri modu, Min/Maks yakalama modu, fark/azaltma modu
Vurgulamak:

ultrasonic thickness gauge with A Scan

,

B Scan ultrasonic thickness gauge

,

through coating thickness measurement gauge

TG-5100D Real time A Scan and B Scan Through Coating ultrasonic thickness gauge





This ultrasonic thickness gauge developed and produced by our company uses OLED true color screen, built-in real time A-SCAN & B SCAN and thickness measurement through coating, large capacity data storage and other functions, and uses the ultrasonic measurement principle, is a high precision,high resolution portable industrial nondestructive testing instrument.



The instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection industry and other testing fields. In addition to a variety of plates and various processing parts for accurate measurement, can also be used to monitor the production of various pipes and pressure vessels in the process of use, monitoring their corrosion after the thinning degree, is the nondestructive testing industry necessary instruments.



A-SCAN snapshot function, which can help users to better control the measurement and avoid the error measurement caused by the factors of the material itself. When there is a coating or paint layer on the surface of the material under test, the actual thickness of the substrate of the workpiece can be obtained without grinding and destroying the surface coating.




Technical parameters

  •
2.4 inch TFT QVGA(320×240) color OLED screen with contrast ratio of 1010:1
working principleUltrasonic pulse/echo/Echo method using double Crystal probe
Measuring range0.5 to 508 mm (0.025 to 20.00 in)
Measurement resolution0.01 or 0.1mm(0.001 or 0.01in)
  •
Millimeter or inch
Display modeThickness value mode, min/Max capture mode, difference/reduction mode
V path correctionAutomatic V path correction compensates for the nonlinearity of the twin probe
Measurement update rateOptional 4HZ, 8HZ, or 16HZ per second
Material speed range
  1. ,0.0179-0.3937in/u
Working languageChinese/English/French (optional)
Alarm setMax/min alarm, dynamic change thickness reading color when alarm
Power supplyTwo 1.5V AA batteries
Operating timeTwo AA batteries, more than 35 hours of service
The instrument to turn it offOptional Automatic shutdown after no operation is performed for 5, 10, or 20 minutes, or manual shutdown
  •
-10 to +50 ºC, up to 20 ºC with special requirements
  •
  1. ×76mm×37mm(H×W×D)
Shelf lifeContain battery 280g
  •
12 Months



Standard delivery
Main unit TG-5100D
Probe with cable

  •

Carrying case
Instruction manual
Calibration certificate
Optional accessories

High temperature probeCast iron probe
Narrow tube probeMiniature probe
Probe cableStep block
Rubber Sheath



Probe with measuring range

Probe described
  • (MHZ)
Contact area Diameter

Measuring range

(In steel)

Allowed ContactTemperature
Cast iron probe ZT12
  1.
  1.
  • 4.0~508.0)mm
  • -10~60)ºC
Standard probe PT12
  1.
  1.
  1.
  • -10~60)ºC
Standard probe PT08
  1.
  1.
  1.
  • -10~60)ºC
Standard probe TC510
  1.
  1.
  1.
  • -10~70)ºC
Small crystal tube probe PT06
  1.
  1.
  1.
  • -10~60)ºC
Miniature probe PT04
  1.
  1.
  1.
  • -10~60)ºC
High temperature probe
  1.
  1.
  1.
Below 480ºC



Main functional features
1. Simple single-level parameter configuration menu
2. Real time A- scanning. The user can see the ultrasonic signal waveform directly on the screen, which is used to verify the thickness reading is correct, analyze the cause of the problem, and help the user find a solution to the problem.
3. When the probe is coupled with the workpiece, the thickness value is displayed in white font.
4. Thickness alarm: alarm thickness limit can be set, and the color of thickness reading can be dynamically changed during alarm.
5. Maximum mode: capture the maximum and minimum values in the measurement process
6. Difference mode: Obtain the difference between the current thickness measurement value and the nominal thickness and the percentage of difference value and the nominal thickness
7. Support millimeter and inch thickness units
8. Large capacity data storage function: can store 100,000 thickness values
9. Can penetrate the coating on the surface of the workpiece, directly measure the thickness of the substrate
10. The user can choose the measurement resolution in metric system x. XX and X.X, and in British system x. XX and X.X
11. Multi-language interface is optional
12. Standby time up to 35 hours
