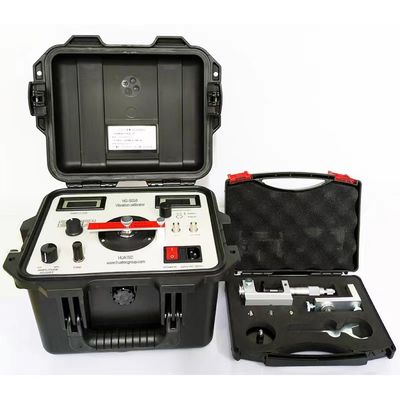

HG-5026 Vibration Calibrator 1~1280Hz for Vibration Meter & Accelerometer Calibration

HG-5026 Vibration Calibrator 1~1280Hz for Vibration Meter & Accelerometer Calibration

Can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instruments. Standard sine signals at frequency 10, 20, 40, 80, 160, 320, 640 and 1280 Hz can be generated from the calibrator. It also has a socket for input from an external signal generator for any vibration frequency and even sweep signal. The amplitude of the, acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated.

HG-5020i combines sine signal generator, power amplifier, standard transducer and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Maximum vibration amplitude and maximum load

Specifications

Frequency: from 1 to 1280 Hz

Amplitude accuracy:

Acceleration(@10m/s² pk) 40Hz to 320Hz + 0.3dB + 1digit

20Hz to 1280Hz + 0.5dB +1digit

Velocity ( @20mm/sec pk) 40Hz to 320Hz +0.5dB +1digit

Displacement(@50μm pk-pk) 40Hz to 320Hz + 0.5dB + 1digit

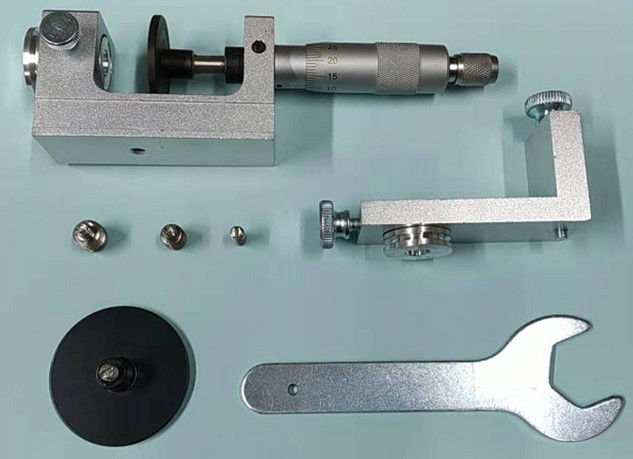

Proximity probe linearity linearity calibration kits

Prode: 5mm and 8mm probes Range: 0~2.0mm

Display: 3 ¹/₂ digit display for velocity and frequency

Size: 300 x 250 x 210(mm) Net Weight: 6 kg

Temperature: Operation: 0^oC to 50 ^oC Storage: -20 ^oC to 70 ^oC

Power: 220Vac (optional 110Vac)
