110V AC Yoke Magnetic Particle Testing HCDX-Y2

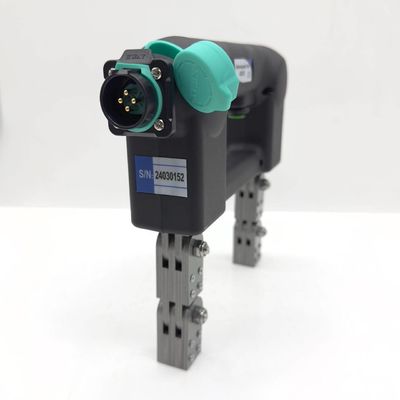

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

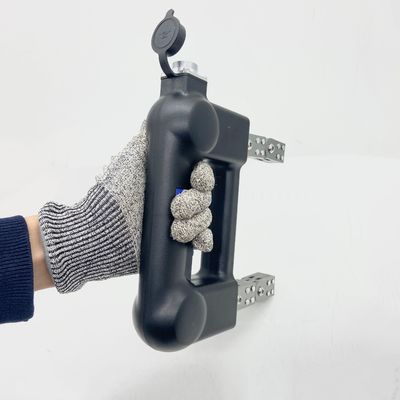

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.
A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.
SPECIFICATION COMPLIANCE
JB/T7411-2012
ASTM E1444-05
ASTM E709
EN10228-1:1999
ISO 9934
ASTM E 3024
Parameters index
|
Model
Items
|
HCDX-Y2
|
HCDX-Y9
|
|
Electrical Requirements
|
AC110-115V 50/60Hz
AC220-230V 50/60 Hz
AC240V 50/60Hz
|
|
Waveform
|
AC
|
|
Tangential Field Strength
|
> 2kA/m at midpoint between legs / poles
|
|
Working temperature
|
-10～+40℃
|
|
Duty Cycle
|
50%, max on time is 90 seconds
|
|
Ingress Protection (IEC 60259)
|
IP54
|
|
Relative humidity
|
<80%
|
|
Sensitivity
|
ASTM E1444-05,ASME 2007 page number V
|
|
DC power pack
|
X
|
●
|
|
AC working current
|
|
|
DC working current
|
X
|
DC 1.5A
|
|
Battery charging time
|
X
|
3hours
|
|
Battery working time
|
X
|
6h
|
|
Leg / Pole Span
|
0~220mm
|
|
Leg size
|
22*22mm
|
|
Power cord length
|
3M
|
|
Lifting Force
|
A C
|
≥7.1kg (69N)
|
|
D C
|
≥22.2kg (216N)
|
|
Weight
|
|
|
|
|
|
|
Note:“X”not included, “●”included
FEATURES
• Ergonomic, light-weight design
• IP54 sealed housing resists dust and water
• Field-swappable power cord

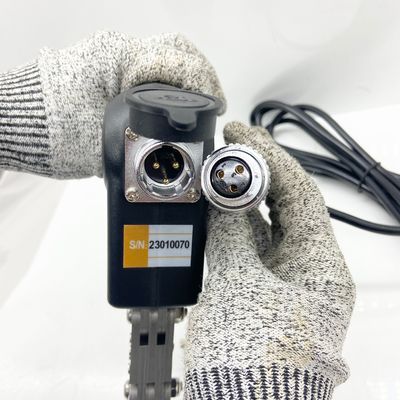

• Isolated, replaceable trigger switch
• Steel shields for leg protection
• Exceeds ASTM lifting specifications
• Convenient carrying case supplied with all yoke shipments
• Optional LED UV & White yoke light lasts longer and is more intense compared to traditional bulbs
• Two power supply modes are optional:
l 110V/220V/240V Single-phase AC power supply (straight plug mode);
l DC magnetization power supply (DC battery pack with digital display screen)
• Optional special waist pack can carry magnetized power battery, magnetic suspension, contrast agent etc.
APPLICATIONS
Defect location: Surface Ideal for:
• Field Testing
• Difficult to reach areas
• Spot, weld and in-service inspections Defect examples:
• Seams
• Tears
• Shrink cracks
• Quenching cracks
• Fatigue cracks
Standard package

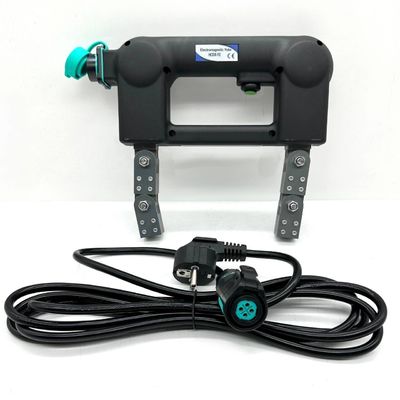

HCDX-Y2
Yoke

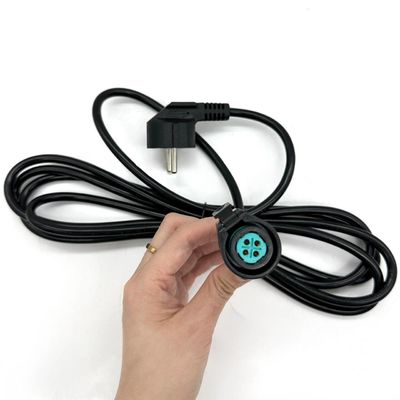

Power cord
Calibration certificate
Warranty card

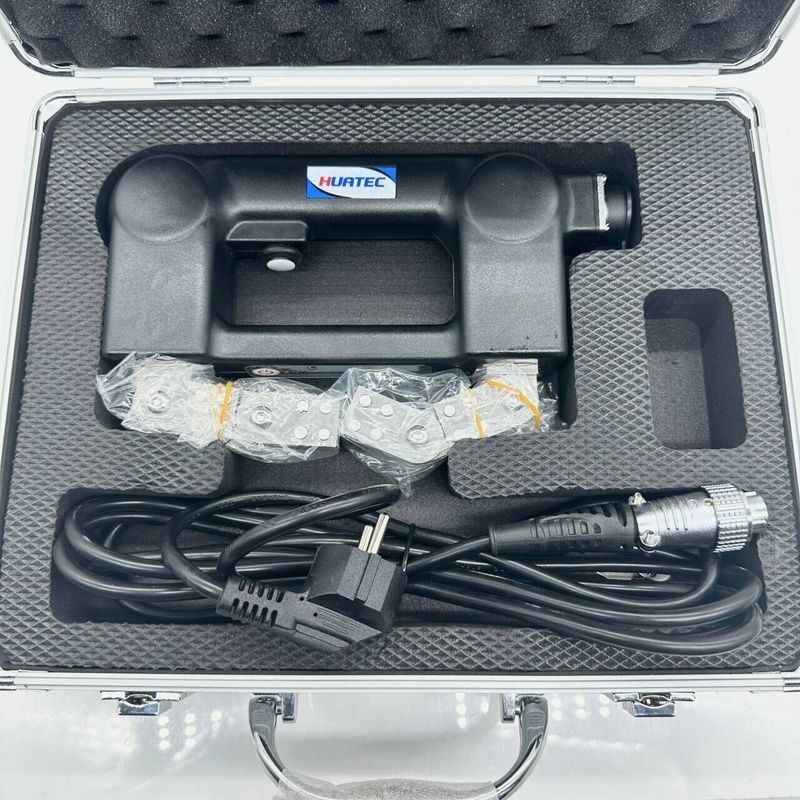

Carrying case
HCDX-Y9
Yoke
Power cord
Calibration certificate
Warranty card
Carrying case
DC battery pack
DC battery charger
DC battery power cord
DC battery bag
Carrying case
