Ürün ayrıntıları:
|
Görüntülemek: | 2.0 inç yüksek tanımlı renkli ekranı, aynı anda birden fazla parametre görüntüleyerek bir bakışta. | Arayüz: | USB veri iletişim arayüzü, şarj işlevi ile uyumlu, yüksek pil ömrü, en az 8 saatlik bekleme süresi. |
---|---|---|---|
Depolamak: | Veri ve dalga formlarını 100 ölçüm noktasından saklayabilir ve dalga formlarında 400 çizgi frekans s | Yazılım: | Veri yönetimi, trend analizi, dalga formu analizi ve 400 çizgi çözünürlük spektrumu elde etmek için |
Pil: | Düşük güçlü bir ekran olduğunda, şarjı tamamlamak için iletişim kablosunu bağlayın. | ||
Vurgulamak: | portable vibration detector HG-219,multiple functions vibration detector,non-destructive testing equipment with warranty |

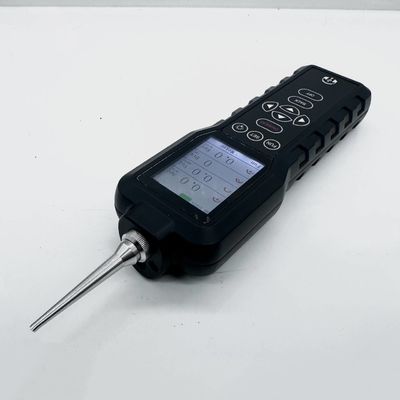

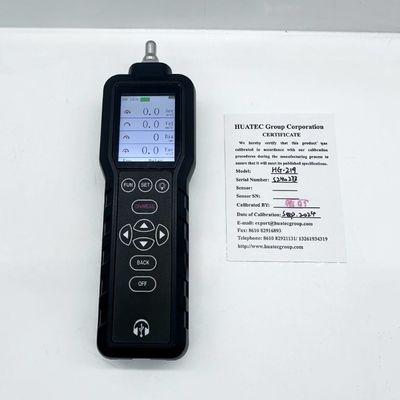

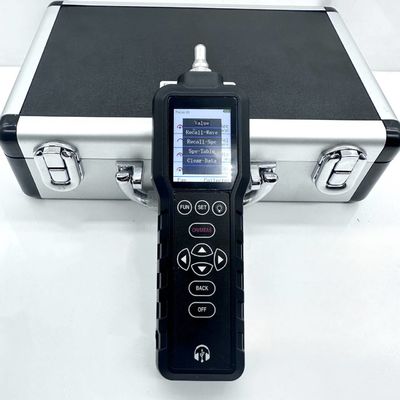

Portable multiple functions HG-219 Vibration Detector
The HG-219 vibration detector has multiple functions, including a vibration meter (with ISO10816-3 standard), data acquisition device, thermometer, frequency analyzer, electronic stethoscope, lighting, etc. Five vibration measurement parameters can be selected, including automatic hold, automatic storage, and automatic shutdown. It can not only measure vibration parameters such as acceleration, velocity, displacement, and envelope, but also diagnose faults in rotating and reciprocating machinery; And it is possible to diagnose faults in rotating machinery, bearings, and gears by measuring the envelope value of the bearings. The measured values meet the intensity standards of rotating machinery and are widely used for fault detection of mechanical equipment in fields such as mechanical manufacturing, electricity, chemical engineering, etc.

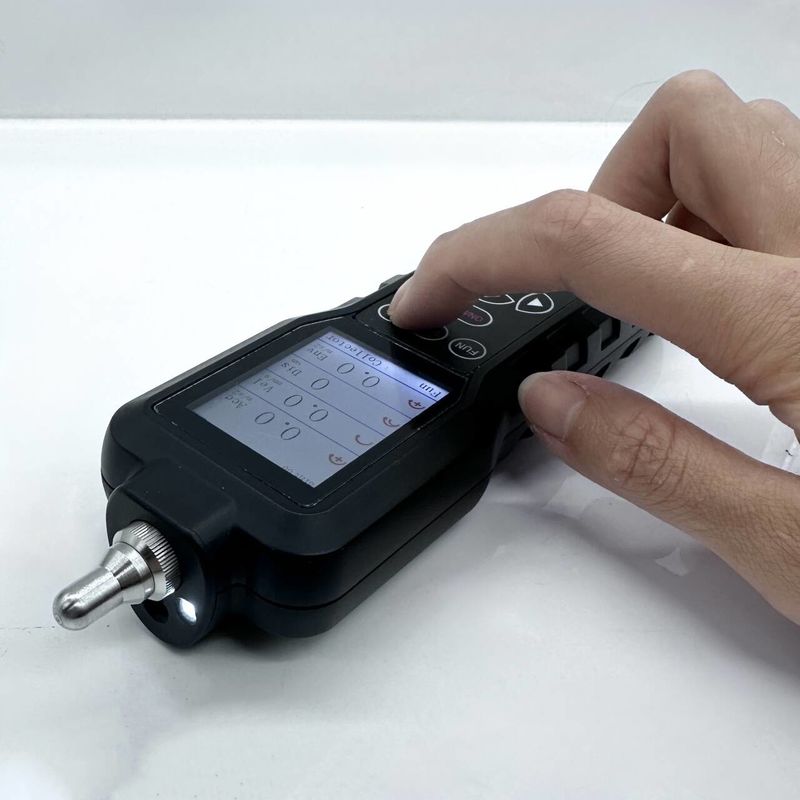

● 2.0-inch high-definition color screen, displaying multiple parameters simultaneously at a glance.
● Can measure multiple parameter vibration values and display waveforms, spectra, and spectrum lists
● Measurable vibration bearing envelope, used for fault detection of various rolling bearings
● Measurable temperature
● Can connect headphones with device malfunction auscultation function
●Lighting function provides assurance for on-site work.
●There is a USB data communication interface that facilitates communication with computers.
●USB data communication interface, compatible with charging function, high battery life, at least 8 hours of standby time.
●It can store data and waveforms from 100 measurement points, and can be used in conjunction with computer analysis software to perform 400 line frequency spectrum analysis on waveforms.
●The measurement point data includes acceleration, velocity, displacement, envelope and other numerical values. The waveform of each measurement point is a 1024point waveform.
●Equipped with dedicated computer analysis software to achieve data management, trend analysis, waveform analysis, and 400 line resolution spectrum.
● Scheduled automatic shutdown
1. Click on the<Function>(FUN) button and press the<↑><↓>button to activate the intensity standard function (ISO10816-3)
2. There are a total of four intensity standards, namely:
① The first and third sets of rigid standards
② The first and third sets of flexible standards
③ The second and fourth sets of rigid standards
④ The second and fourth sets of flexible standards
Acceleration (ACC unit: m/s2): Equivalent peak value
Velocity (VEL unit: mm/s): true RMS value
Displacement DISP (unit: m): peak to peak value
Env (unit: m/s2): True Significant Value
Temperature: Infrared measurement of surface temperature of objects
● Store 100 points (including 4 vibration values and 1 waveform)
1. Accelerometer vibration sensor:
2. Measurement range, frequency response range, and accuracy:
measuring range |
Frequency range |
Accuracy |
|
Acceleration |
0.1—199.9m/s2 |
10-5KHz |
±5% |
Velocity |
0.1—199.9mm/s |
10-1KHz |
±5% |
Displacement |
1—1999um |
10-500Hz |
±5% |
Envelope |
0.1—19.9m/s2 |
10-5KHz |
±5% |
Temperature
Hh |
-20—180℃ |
|
±1% |
● Dimension: 180 x 50 x 25 (mm)
● Weight: 100g (including battery)
● Battery: When there is a low power display, connect the communication cable to complete charging.
● Working temperature: 0 ℃~50 ℃, relative humidity:<85%
●The instrument host has a 12-month warranty and the accessories have a 3-month warranty. Instrument damage caused by abnormal use is not covered by the warranty.
●Please bring the warranty card or certificate of conformity when repairing or calibrating the equipment.

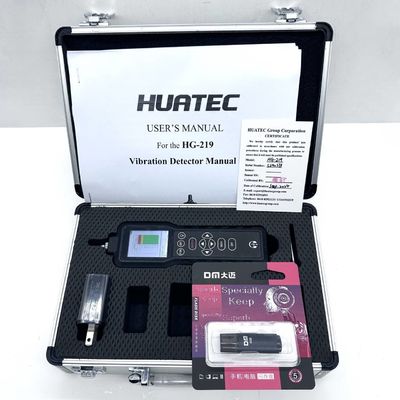

Item name |
Inner sensor |
Instrument host |
√ |
Short probe |
√ |
Long probe |
√ |
Rechargeable lithium battery (3.6V)battery (3.6V) |
√ |
USB charging/communication cable |
√ |
battery charger |
√ |
