Ürün ayrıntıları:
|
Yükleme Süresi Yük: | 5-60 saniye | Numunenin Maksimum Yüksekliği: | Yaklaşık 65mm |
---|---|---|---|
Maksimum örnek: | Yaklaşık 85mm | Dijital Veri Ekranı: | (5-2500) HV |
Mikro test masası: | Boyut: 100_100mm maks. | ||
Vurgulamak: | touch screen Vickers hardness tester,digital display micro hardness tester,non-destructive testing equipment with warranty |

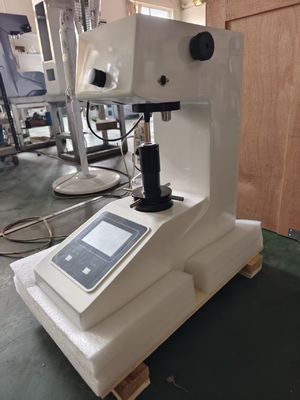

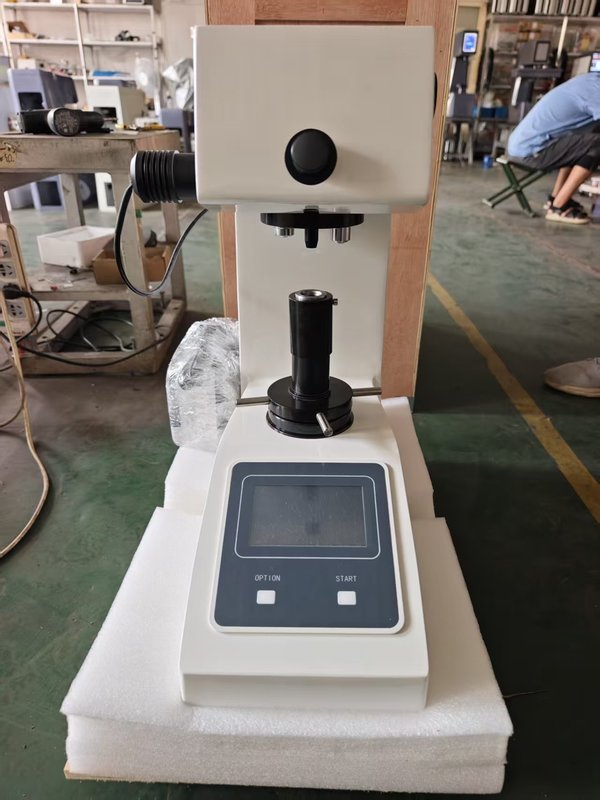

HVS-1000 Touch Screen Digital Display Micro Vickers Hardness Tester
Detailed Product Description
· Model HVS-1000 digital micro hardness tester is an integrated optical, mechanical and electrical popularized type micro hardness tester
· This tester adopts programming by computer software, high magnification optical measuring system and photo electric sensor etc such technique
· By means of input by membrane switches, it may adjust the measurement of either strong or weak light source, preset the holding time for test force or load, cut and change either the Vicker's of Knoop's test method
· The hardness tester is also equipped with photographic device that may take photo of all measured indentation and the metallographic formation of materials
· It is suitable to measure the micro hardness of small, thin specimen, and superficial permeable coating (or plating) layer etc such specimen, as well as to measure the micro hardness of glass, ceramics, agate, and gem etc such brittle materials
Specifications
Test load |
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf) |
Loading mechanism |
Automatic loading and releasing method |
Magnification of microscope |
Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece 10x) |
Load holding time |
5-60sec |
Measuring microscope |
Mechanical |
Digital |
|
Max.measuring length 150μm |
|
Min.measuring unit 0.0625μm |
|
Max.height of specimen |
Approx 65mm |
Max.depth of specimen |
Approx 85mm |
Micro test table |
Dimension:100_100mm Max.movement:25mm in X&Y axis Min.micro graduation:1/100mm |
Digital data display |
(5-2500)HV |
Automatic recorder |
Printer |
Photographic device |
Possible to install at any time |
Dimensions of tester |
W290 x D405 x M480mm |
Weight of tester |
25kg |
Power supply |
AC220V/110V±10% 50Hz/60Hz |
Standard delivery
Main unit 1
10 x objective 1
Weight shaft 1
Cross testing table 1
Screwdriver 2
Level 1
Fuse 1A, 2A 2
Certificate 1
Manual 1
Micro Vickers indenter 1
40 x objective 1
Weight 6
Fine wire holder 1
Horizontal adjusting screw 4
Lamp (6V/2 W) 2
Manual for printer 1
10 x micrometer eyepiece 1
Micro Vickers hardness test block (medium) 1
Optional accessories
Depending on customer demand
Key words:micro hardness tester, microhardness tester, micro vickers hardness tester, metal hardness tester, hardness tester
