HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester
HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

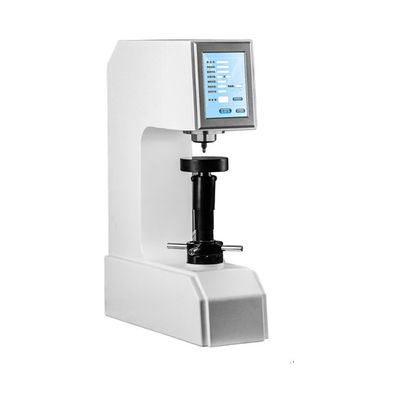

Büyük resim :  HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATEC
Sertifika: CE
Model numarası: HR-150DT-P
Belge: HR-150DT-P Touch screen dig...er.pdf
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 PC
Fiyat: USD2530/set - USD2860/set
Ambalaj bilgileri: Karton paketleme kutusu
Teslim süresi: Ödemenizi aldıktan 7-10 iş günü
Ödeme koşulları: T/T, PayPal
Yetenek temini: 10 set/ay

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

Açıklama
İlk Test Kuvveti: 10 kgf (98.07 n) Rockwell'in toplam yükü: 60kgf(588N) 100kgf(980N) 150kgf(1471N)
Yük değeri hatası: % 0,5'ten az Sertlik ölçüm doğruluğu: 0,1 SA
Örneğin maksimum yüksekliği: 200 mm Girintinin dış duvara olan mesafesi: 200 mm
Yük elde tutma süresi: 0-99s Veri depolama: 20 Test Sonuçları, Yerleşik Yazıcı RS-232 Arayüzünü saklayabilir
Vurgulamak:

touch screen Rockwell hardness tester

,

digital plastic hardness tester

,

Rockwell hardness tester with warranty

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester

I,   Product Description:

  1. Using weights electric loading, high-precision sensor.
  2. Touch screen interface, easy to operate.
  3. According to the standard hardness block, each hardness scale is divided into high, medium and low three sections for automatic correction.
  4. Built-in convex cylinder hardness correction.
  5. Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified range, over limit automatic alarm, can input tester, sample name and other information.
  6. The test results can be automatically stored, processed and printed.

II,  Technical parameters:

Model number

HR-150DT-P

Initial test force

10 KGF (98.07 N)

Total test force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell hardness scale

HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV

Scope of testing

HRE:70-100   HRL:100-120  HRM:85-110  HRR:114-125

Load retention time

0-99s

Hardness value resolution

0.1 HR

Test force error

< 1.0%

Data output

LCD display

Touch screen size

8 inches

Data storage

Can store 20 test results, built-in printer RS-232 interface

Compliant with standards

GB/T230.2, GB/T3398.2, JB/T7409

Maximum allowable specimen height

200mm

Distance from indenter to machine wall

200mm

Size

560×200×800mm

Weight

70kg

Power supply

AC220+5%,50 to 60Hz

 III,Standard accessories:

Name

quantity

Name

Quantity

Touchscreen pen, printer paper

1 each

Large, medium, and V-shaped test stands

1 each

Ball indenter (diameter 3.175, 6.35, 12.7mm)

3 pieces

Hardness blocks (HRE,HRL,HRM,HRR)

4 blocks

Spirit level

1

Horizontal adjustment foot

4

Power cord

A root

Dust bag

1

Product certificate, warranty card

1 copy

Instructions

1 copy

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester 0

HR-150DT-P Touch screen Digital Plastic Rockwell Hardness Tester 1
