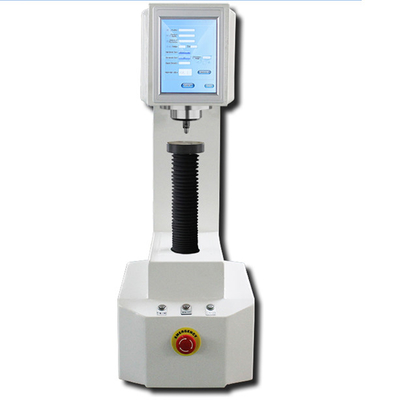

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester
HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Büyük resim :  HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATEC
Sertifika: CE
Model numarası: HR-150DX (H)
Belge: HR-150DX (H) advanced digit...er.pdf
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 PC
Fiyat: USD3542/set - USD4004/set
Ambalaj bilgileri: Karton paketleme kutusu
Teslim süresi: Ödemenizi aldıktan 7-10 iş günü
Ödeme koşulları: T/T, PayPal
Yetenek temini: 10 set/ay

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester

Açıklama
Ölçeklerin değiştirilmesi: Surface Rockwell, Brinell ve Vickers Bekleme süresi: 0-99s
Rockwell'in toplam yükü: 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) Yüzeysel Rockwell'in toplam yükü: 15kgf (147,1N) 30kgf (294,2N) 45kgf (441,3N)
Yük değeri hatası: % 0,5'ten az Sertlik ölçüm doğruluğu: 0,1 SA
Örneğin maksimum yüksekliği: 400mm Girintinin dış duvara olan mesafesi: 200 mm
Test Gücü Hatası: <% 1.0
Vurgulamak:

Touch Screen Rockwell Hardness Tester

,

Customized height Hardness Tester

,

Non Destructive Testing Equipment with warranty

HR-150DX(H) Customized height increase Touch Screen Rockwell Hardness Tester


Product description:

1. Adopt electronic electric loading, high precision sensor and unique closed-loop control system.

2. Touch screen interface, easy to operate, directly select the hardness scale, force value automatically changes in the test parameters.

3. According to the standard hardness block, the high, middle and low sections of each hardness scale shall be automatically corrected.

4. Test force can be automatically corrected by standard dynamometer.

5. Automatically apply the initial test force and the main test force.

6. Powerful data processing function, including: HR, HB, HV and other hardness standard conversion, set the qualified range, automatic alarm over the limit, can input tester, sample name and other information.

7. More samples and test information, and the measurement data are saved in EXCEL format for easy editing and processing.



Technical parameters:

Model

HR-150DX(H)

Beginning test force

10kgf(98.07N)

Total test force

60kgf(588N)   100kgf(980N)    150kgf(1471N)

Rockwell hardness scale

HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRR,HRP,HRS,HRV

Test range

HRA:20-88,HRB:20-100 ,HRC:20-70 ,HRD:40-77 ,HRE:70-100 ,HRF:60-100 ,HRG:30-94,HRH:80-100,HRK:40-100,HRL:100-120  HRM:85-115, HRR:114-125

Duration time

0-99s

Hardness resolution

0.1HR

Error of test force

1.0%

Data output

LCD display

data storage

Measurements are stored on a usb drive in EXCEL format

Conversion scale

Surface Rockwell, Brinell and vickers

standard

BSEN 6508, ISO 6508, ASTM E18, GB/T230

Maximum allowable height of specimen

400mm

Distance from head to wall

200mm

Size

560×220×980mm

Weight

90kg

Power

AC220+5%,5060Hz

Standard accessories:

Name

Quantity

Name

Quantity

Diamond head

1PC

Diameter 1.5875mm ball indenter

1PC

Hardness block (2PCS HRC and 1PC HRB)

total 3 pieces

Large, medium and V type test stand

Each one

Fuse 2A

2pcs

Adjust the foot horizontally

4pcs

Usb flash drive, touch pen

Each one

Dust bag

1pc

Power

1pc

instructions

1pc

Product certificate and warranty card

1pc
