CX-230 Magnetic Particle Test Piece QQI ASTM E1444 Low-Carbon Steel

Açıklama
standart: ASTM E1444/E1444M-11 Kalınlık: 0.002 inç
Malzeme: Düşük Karbonlu Çelik
Vurgulamak:

magnetic particle inspection test piece

,

QQI standard test piece

,

non destructive testing equipment

CX-230 Standard Magnetic Particle Inspection Test Piece QQI
Product Specifications
Attribute Value
Standard ASTM E1444/E1444M-11
Thickness 0.002 inch
Material Low-carbon steel
Material and Structure

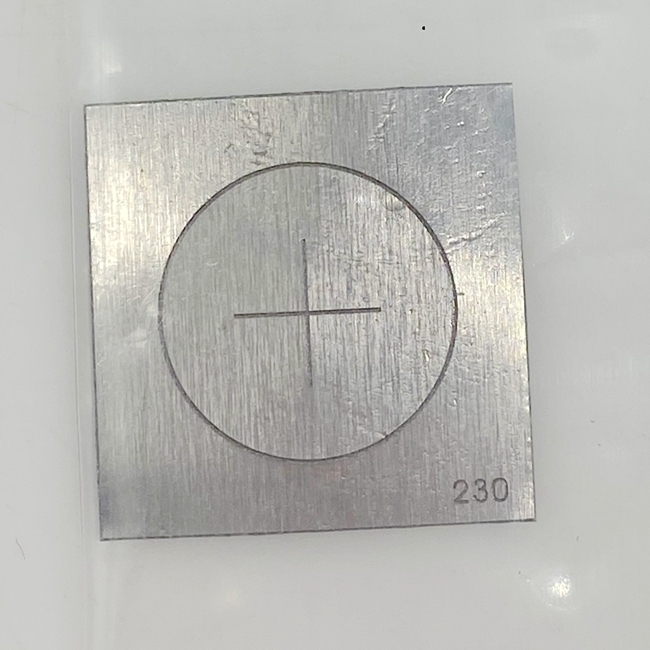

The CX-230 is typically manufactured from AISI 1005 low-carbon steel with a standard thickness of 0.002 inches (approximately 0.05 mm). The test pieces feature specific photolithography-engraved patterns such as concentric circles or crosses. Common size is 3/4 square inches, with smaller sizes available upon request.

Inspection Requirements
Inspection Item Requirements
Color Bright silver metal surface, free from rust, scratches, or corrosion
Plainness Test piece must lie completely parallel when placed on bare board with no wrinkles or burrs. Surface roughness RA of 0.8μm
Dimensions
  • Side length: 0.75in × 0.75in
  • Average thickness: 0.002in
  • Artificial defect symbols: "o" (diameter 0.507in) and "+" (0.25in) centered on test piece
  • Groove depth: 0.0008in; width: 0.007in
Quality Physical and chemical tests confirm material as 1005 Steel Park electromagnetic pure iron plate, compliant with GB6985 standards
Usage Instructions

Before use, remove the corrosion-resistant protective film from the QQI. Position the artificial defect surface against the part surface, securing it either by covering the edges with transparent tape or using permanent adhesives like cyanoacrylate. Ensure complete contact with no gaps or loose areas, and no adhesive residue on the inspection surface.

After magnetizing the parts and applying magnetic powder, adhesion to the etching pattern confirms adequate magnetic field intensity and proper direction.

Compliance Standards

Manufactured in strict compliance with:

  • AISI 1005 low-carbon steel requirements per AMS standard
  • SAE aerospace standard AS 5371
  • ASTM E1444-05 provisions
  • ASME Boiler and Pressure Vessel Code Vol. V, Part 7
