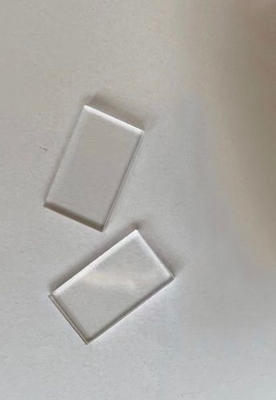

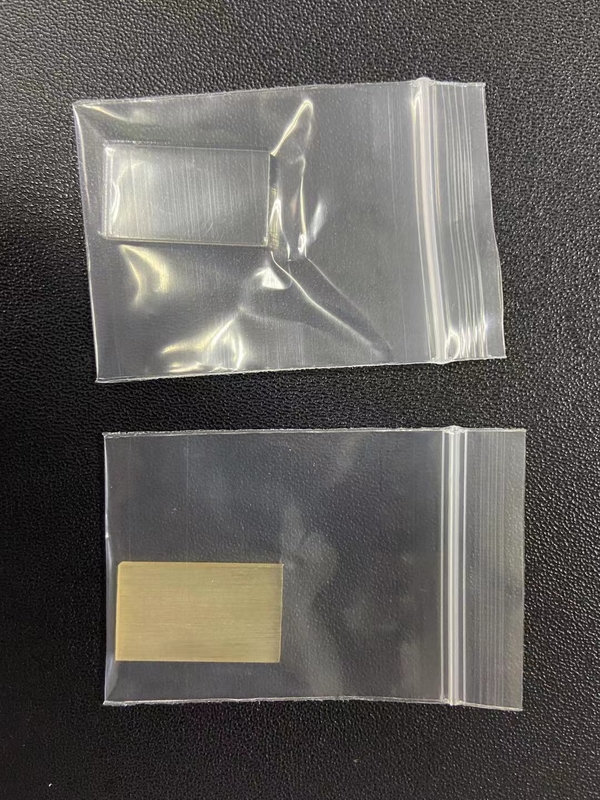

Anti-wear Probe Shoes for NDT Straight and Angle Probes

Anti-wear Probe Shoes for NDT Straight and Angle Probes
Anti-wear Probe Shoes for NDT Straight and Angle Probes Anti-wear Probe Shoes for NDT Straight and Angle Probes

Büyük resim :  Anti-wear Probe Shoes for NDT Straight and Angle Probes

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: HUATEC
Sertifika: CE
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 PC
Ambalaj bilgileri: Karton paketleme kutusu
Teslim süresi: Ödemenizi aldıktan 7-10 iş günü
Ödeme koşulları: T/T, PayPal
Yetenek temini: 10 set/ay

Anti-wear Probe Shoes for NDT Straight and Angle Probes

Açıklama
Çalışma sıcaklığı: - 40 ℃-+135 ℃
Vurgulamak:

anti-wear probe shoes for NDT

,

straight probe shoes with warranty

,

angle probe shoes for ultrasonic testing

Anti-wear Probe Shoes for Straight and Angle Probes
Working temperature -40℃ to +135℃
Material and Type
  • Hard protective film: Commonly made of alumina (corundum), ceramic sheets, metal sheets or plexiglass. It has high wear resistance and strength, suitable for situations where the workpiece surface finish is high and flat.
  • Soft protective film: Usually made of polyurethane soft plastics, typically a transparent plastic film about 0.3 millimeters thick. Suitable for workpieces with low surface finish or certain curvature, improving acoustic coupling and enhancing acoustic energy transmission efficiency.
Technical Parameters
Sound energy loss parameters Hard protective films cause 20dB to 30dB loss on rough surfaces. Soft protective films typically lose 6dB to 7dB.
Hardness parameter Some wear-resistant plates use 316 stainless steel with carburized and quenched lower surface (hardness up to HRC60, hardened layer depth >2mm).
Thickness-related parameters Protective film thickness affects ultrasonic wave propagation. Maximum transmittance occurs at integer multiples of half wavelength; minimum at odd multiples of quarter wavelength.
Material characteristic parameters Example: Alumina ceramic protective film (96% or 99.5% alumina) with working temperature range of -40℃ to +135℃, offering high reliability and long-term stability.
Performance Requirements
  • Good wear resistance: Resists friction from workpiece contact, reducing probe wear and extending service life.
  • High strength: Withstands pressure and friction during detection without breaking.
  • Low sound attenuation: Minimal effect on ultrasonic waves to ensure detection accuracy.
  • Good sound transmission: Excellent sound transmission minimizes energy loss without affecting signal quality.
  • Appropriate thickness: Thickness affects ultrasonic wave penetration rate and probe resonant frequency.
Working Principle

The probe film of straight probes covers the piezoelectric wafer, separating it from the workpiece to prevent direct contact and wear. Angle probes typically use wedges to direct ultrasonic waves, with some also using protective films following similar principles to protect the wafer while ensuring effective wave propagation.

Installation and Usage
  • Hard protective films are usually pre-installed during probe manufacturing.
  • Soft protective films require coupling agent application before installation.
  • During installation, press the protective film tightly against the measurement surface to expel air and ensure optimal fit.
Impact on Test Results

All solid protective films cause some sound wave distortion, reducing resolution and sensitivity (more severe with hard films). Selection should be based on actual detection requirements to minimize impact on results.

Anti-wear Probe Shoes for NDT Straight and Angle Probes 0 Anti-wear Probe Shoes for NDT Straight and Angle Probes 1 Anti-wear Probe Shoes for NDT Straight and Angle Probes 2
