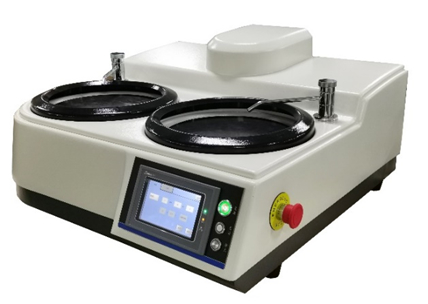

HPA-2SE Metallographic Grinding Polishing Machine 1KW Motor

HPA-2SE Metallographic Grinding Polishing Machine 1KW Motor
HPA-2SE Metallographic Grinding Polishing Machine 1KW Motor

Büyük resim :  HPA-2SE Metallographic Grinding Polishing Machine 1KW Motor

Ürün ayrıntıları:
Place of Origin: China
Marka adı: HUATEC
Sertifika: ISO,CE
Model Number: HPA-2SE

HPA-2SE Metallographic Grinding Polishing Machine 1KW Motor

Açıklama
Motor power: Motor power Working disk diameter: φ254 mm (optional φ200, φ230, φ300mm)
RPM (r/min): 5-1000. Four-speed manual (r/min): V1=200, V2=400, V3=600, V4=800 (user can change)
Vurgulamak:

HPA-2SE metallographic grinding machine

,

1KW motor polishing machine

,

metallographic polishing equipment with warranty

HPA-2SE Metallographic Grinding & Polishing Machine

  • Product Features
  1. PLC+ high power motor, double grinding disc;
  2. 1KW high power motor , no matter the speed is fast or slow, the torque is large and constant;
  3. The speed range is wide, from 5 RPM to 1000 RPM (maximum 1500 RPM);
  4. The working table quickly starts and stops, and the turntable can stop rotating in 2 seconds;
  5. Speed, grinding time, rotation direction and other grinding parameters, and automatically save, easy to call;
  6. Manual mode, four gears;
  7. Imported PLC brand, reliable quality;
  8. Touch screen interface, easy to set grinding and polishing parameters;
  9. Connect and control polishing droplet (optional).
  • Technical parameters
Item Specifications
Model HPA-2SE
Motor power 1Kw
Working disk diameter φ254 mm (optional φ200, φ230, φ300mm)
RPM (r/min) 5-1000.
Turning direction Counterclockwise/clockwise optional, positive and negative turn automatic switch
Programming User can self-program, call
Four-speed manual (r/min) V1=200, V2=400, V3=600, V4=800 (user can change)
Overall dimension (mm) 760 x 730 x 360 (L * W * H)
Weight 38kg















Name quantity Name Quantity
Anti-stick disc (254mm) 2 Magnetic working disc (254mm) 2

Sandpaper (with back glue, 250 diameter)

180#, 800#, 1500#

2 each

Diamond suspension grinding polish

6 microns 200 ml

1 bottle
Flocking polishing cloth (with back glue, 250mm) 1 sheet Canvas polishing cloth (with back glue, 250mm) 1 piece

3. Standard accessories

Name quantity Name Quantity
Anti-stick disc (254mm) 2 Magnetic working disc (254mm) 2

Sandpaper (with back glue, 250 diameter)

180#, 800#, 1500#

2 each

Diamond suspension grinding polish

6 microns 200 ml

1 bottle
Flocking polishing cloth (with back glue, 250mm) 1 sheet Canvas polishing cloth (with back glue, 250mm) 1 piece
