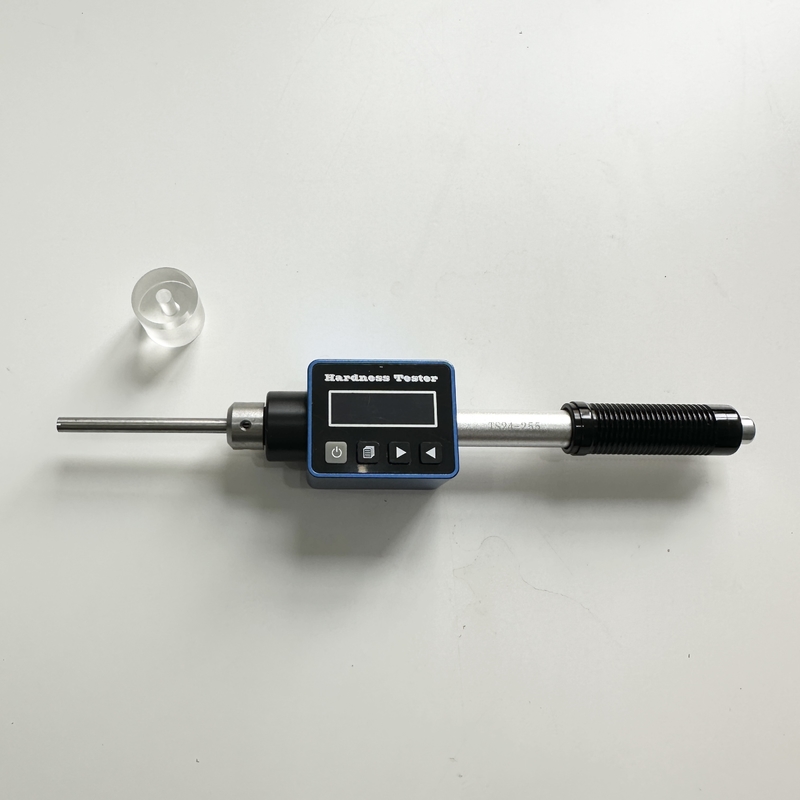

RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB

RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB
RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB

Büyük resim :  RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: HUATEC
Sertifika: CE
Model numarası: RHL-110DL
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 bilgisayar
Fiyat: USD747/set - USD845/set
Ambalaj bilgileri: Karton ambalaj kutusu
Teslim süresi: Ödemenizi aldıktan sonra 1-3 iş günü
Ödeme koşulları: T/T,PayPal
Yetenek temini: 10 takım/ay

RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB

Açıklama
Sertlik ölçeği: HL, HRC, HRB, HRA, HV, HB, HS Ölçüm aralığı: HLD ((170?? 960)
ölçüm yönü: 360° İletişim Portu: KÜÇÜK USB
Görüntüle: nokta vuruşlu LCD 128×32 nokta Veri Depolama: 350 grup maksimum, etki sürelerine göre 32~1
Şarj güç kaynağı: 5VDC,220VAC
Vurgulamak:

Portable Leeb hardness tester OLED

,

Leeb hardness tester USB

,

Portable hardness tester non-destructive

RHL-110DL Integrated OLED display Pen type Leeb Hardness Tester With Micro-USB port
Product Attributes
Attribute Value
Hardness Scale HL, HRC, HRB, HRA, HV, HB, HS
Measuring range HLD(170~960)
Measuring direction 360°
Communication port Mini USB
Display dot matrix LCD 128×32 dots
Data storage 350 groups maxim, relative to impact times 32~1
Charging power supply 5VDC,220VAC
Product Description

The RHL-110DL portable hardness tester can directly measure different types of hardness values including (HRC, HRB, HRA), Leeb (HL), Brinell (HB), Vickers (HV), and Shaw (HS). Compliant with international standards, it meets the "Leeb hardness tester technical conditions ZBN7l 010-90" and the "metal in the hardness test method GB / T 17394-1998" Leeb hardness standard JB/ T9378-2001 standards issued by the Ministry of Machinery Industry and National Quality and Technical Supervision.

With its low-power design and high-performance Li batteries, it achieves ultra-long standby time. The compact and flexible design increases user flexibility.

Technical Specifications
Model RHL-110DL
Hardness scale HL, HRC, HRB, HV, HB, HS
Measuring range HLDL(197 ~ 965), HRB(30.7 ~99.9), HRC(20.6 ~ 68.2), HB(81 ~ 646), HV(80 ~ 950), HS(30.6 ~ 96.8)
Clock Real-time data and time
Auto off 3~5 Minutes without any operation
Data Interface USB,Bluetooth
Power Rechargeable Li Battery, 3.7V
Memory 373~2688 group (Impact times: 32~1)
Display 128 × 36 OLED
Continuous Working time About 30h
Charging time 1.5 ~ 2 hours
Overall dimensions 205.5 × 33 × 30 mm
Weight 110.6g
Key Features
  • All English menu display is easy to manipulate. OLED display for better use in any environments.
  • With Micro USB communication port.
  • Bluetooth module included, it can communicate with Bluetooth printer, mobile phone and PC.
  • Large capacity memory can store 48~350 groups (impact average times32~1) of information including single measured value, mean value, testing date, impact direction, impact times, material and hardness scale etc.
  • Conversion to tensile strength (U.T.S).
  • For all metallic materials.
  • Provide software calibration function.
  • High-performance Li battery with charging circuit providing extra-long working time and standby time. Battery sign displays the current remaining capacity.
  • PC Software can be equipped to meet higher demands in quality assurance, activities and management.
Material Compatibility
Material Hardness test method Impact device type
DL Steel and cast steel Rockwell HRC: 20.6~68.2
HRB: 37.0~99.9
HRA
Brinell HB: 81~646
Vickers HV: 80~950
Shore HS: 30.6~96.8

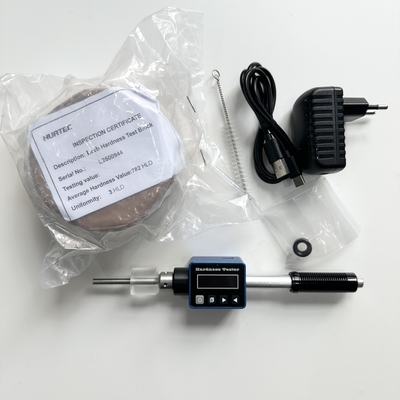

Standard Configuration
NO. Item Quantity
1 Main unit 1
2 Small support ring 1
3 Cleaning brush (I) 1
4 High value test block 1
5 Charger 1
6 Communication cable 1
7 Software 1
Optional Configuration
  • High, medium, and low HLD value test block
RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB 0 RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB 1 RHL-110DL Portable Leeb Hardness Tester with OLED Display and USB 2
