Ürün ayrıntıları:
|
| Çap Ölçüm Aralığı（mm: | Çap 6-50 | Konum Aralığı: | 1-200mm |
|---|---|---|---|
| Birinci Aralık: | 1-60mm | İkinci Aralık: | 30-120mm |
| İnşaat Demiri Konum Doğruluğu: | aralık başına | Çap Ölçüm Modları: | İsteğe bağlı |
| Veri Depolama: | İsteğe bağlı | Ağırlık (kg): | 0,28 |
| Vurgulamak: | Location Rebar detector,HLT-120X huatec Rebar detector,HLT-120X Rebar detector |
||

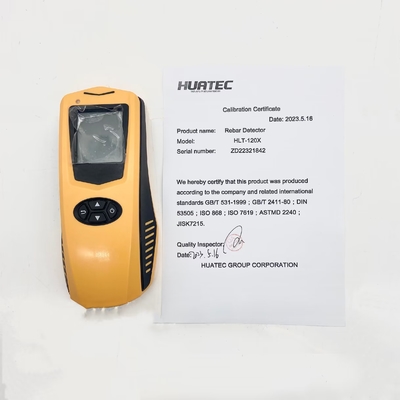

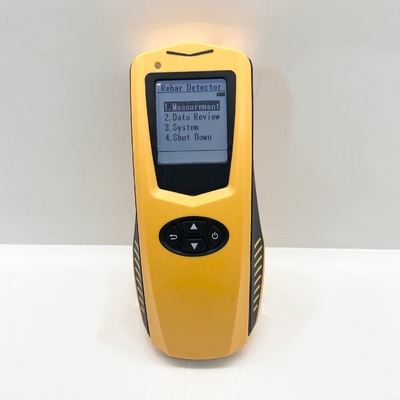

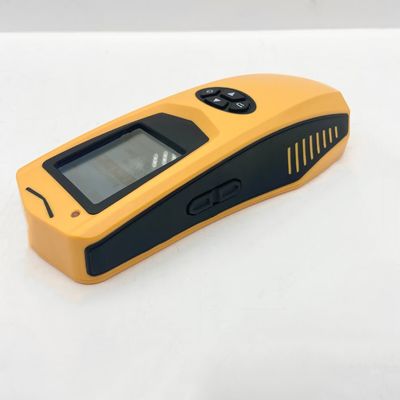

huatec Rebar detector Location detector HLT-120X
Application Range
1,Testing the location, distribution, direction, and diameter of the rebar and the thickness of cover in concrete structure projects.
2,Inspecting and accepting concrete structural construction quality.
3,Evaluating the quality of construction
4,Establishing the location of rebar for drilling, cutting and coring operations.
5,Testing the distribution and direction of electric cables, pipelines and metalwork inside walls and floors.
6,Testing the quantity of rebar when evaluating and developing the old structure, such as installation of furniture and air-condition.
Features
◆The high resolution LCD display: 128 x 128 pixels;
◆The intuitive operation and handheld ergonomic design with good durability;
◆Accurately detect the location of the rebar;
◆Help extend life of drill and avoid damage when drilling and coring;
◆The multi coil structure design with high speed, high precision and high resolution;
◆The built-in high capacity lithium battery, low power consumption, standby for no less than 20h
Technical Specification
| Items | Technical Spec. | |
| Diameter Measuring Range(mm) | Ф6～Ф50 | |
| Measuring Range(mm) |
Location Range: 1～120 First Range: 1～60 Second Range: 30～120 |
|
| Thickness Measuring Accuracy(mm) | 1～40 | ±1 |
| 41～60 | ±2 | |
| 61～80 | ±3 | |
| 81～100 | ±5 | |
| 101～120 | ±8 | |
| Rebar Location Accuracy | 1～60 | ±3 |
| 61-120 | ±6 | |
| Diameter Measuring Modes | Optional | |
| JGJ Measurement | Optional | |
| Data Storage | Optional | |
| Off Time | Automatic | |
| Power Supply | Rechargeable Lithium Battery | |
| Working Temperature | -10℃～+42℃ | |
| Size(mm) | 170×78×38 | |
| Weight(kg) | 0.28 | |
