HPA-620 32:128PR Phased Array Flaw Detector Integrated PA UT TOFD Concurrent Scanning Touch Screen IP65 Industrial Weld NDT Testing Machine

Büyük resim : HPA-620 32:128PR Phased Array Flaw Detector Integrated PA UT TOFD Concurrent Scanning Touch Screen IP65 Industrial Weld NDT Testing Machine

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	HUATEC
Sertifika:	CE
Model numarası:	HPA-620

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Takım
Fiyat:	USD42090/set - USD47580/set
Ambalaj bilgileri:	Dış karton ambalaj
Teslim süresi:	Ödemenizi aldıktan sonra 20-30 iş günü
Ödeme koşulları:	T/T, Western Union, PayPal, L/C

İletişim

HPA-620 32:128PR Phased Array Flaw Detector Integrated PA UT TOFD Concurrent Scanning Touch Screen IP65 Industrial Weld NDT Testing Machine

Açıklama

Görüntülemek:

10,4 inç dokunmatik ekran

Depolamak:

Dahili: 64 GB; Harici: USB flaş disk

T/T:

100V~240V 50Hz/60Hz

Giriş Koruma Derecesi:

IP65

Vurgulamak:

phased array flaw detector industrial weld

NDT testing machine IP65 touch screen

PA UT TOFD concurrent scanning

HPA-620 32:128PR Phased Array Flaw Detector Integrated PA UT TOFD Concurrent Scanning Touch Screen IP65 Industrial Weld NDT Testing Machine

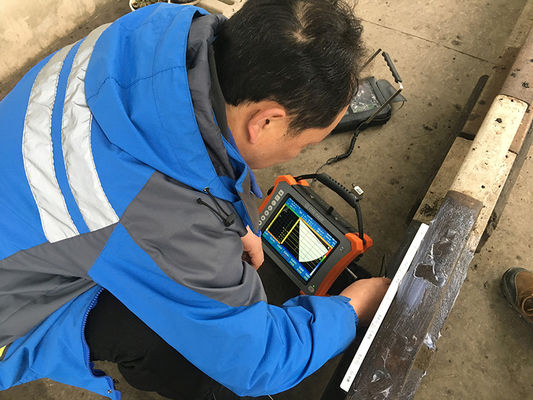

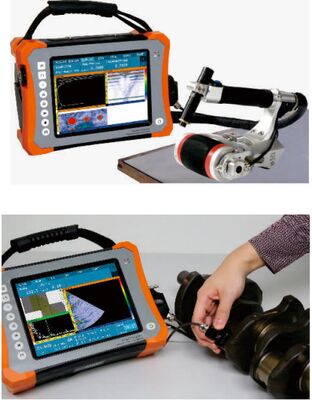

The HPA-620 is a portable 32:128PR Phased Array flaw detector.

It is equipped with the conventional ultrasonic inspection module, TOFD module, conventional Phased Array module, supporting the concurrent scanning of TOFD and Phased Array, as well as dual-array probes. Featuring a water & oil-proof touch screen and full-course testing data recording capabilities, the HPA-620 is an advance intellective Phased Array flaw detector.

Parameter:

Channels
Mode	PA mode	UT mode	TOFD mode
Number	32:128	2	2
Physical Parameter
Display	10.4-inch touch screen
Import	1 IPEX, 4 C5
I/O Ports	2 USB 3.0 (HOST), 1 USB 2.0 (HOST)
	DP(DisplayPort) (can transfer to HDMI)
	WIFI
	LEMO 1B encoder port
	TTL I/O port
GPS	Yes
Storage	Internal: 64GB; External: USB flash disk
Weight	5kg (without battery)
Dimensions	350 mm×250 mm ×130 mm
(L×W×H)
AC	100V~240V 50Hz/60Hz
DC	13.5V
Battery Type	Lithium battery
Battery Capacity	Double battery, each<100Wh
Battery Life	≥4.5h
Temperature	Operating Temperature Range:-10℃~40℃
	Storage Temperature Range:-20℃~60℃
Ingress Protection Rating	IP65
UT
PRF	25Hz~10kHz
Transmitter Voltage	75V~250V (50Ωload)
Pulse Width	30ns~1000ns, with step as 5ns
Damping	400Ω, 80Ω
Sampling Rate	100MHz
Bandwidth	0.5MHz~20MHz (-3dB)
Gain	0.0dB~110.0dB
Sensitivity Surplus	≥60dB (narrow bandwidth), ≥52dB (broad bandwidth) (2.5P20 transducers, 200mmφ2flat-bottomed holes)
Vertical Linearity Error	≤3%
Horizontal Linearity Error	≤0.1%
Resolution	≥26dB(2.5P20)
Dynamic Range	≥30dB
Filter	High-pass, low-pass and multiple narrow band-pass
Rectification	RF (TOFD mode), full wave, half wave +, half wave –
Channels	2 channels
Maximum Coverage	10000mm (in steel longitudinal wave)
Gate	A/B/G
Gate Star	Full range
Gate Width	Gate start to full range
Gate Threshold	1~99%
Alarm	Sound/Optical
Measurement Spot	Front/Peak
TCG	16
Phased Array
Channels	32:128
Max Aperture	32 elements
Max Elements	128 elements
Focus Law	≥1024
Scanning Angle	-89°~89°
Calibration	Velocity, Delay, TCG,ACG, Encoder
Test Volume	1000mm
Min Angle Increment	0.1°( auto-adjustment)
Sampling Rate	100MHz, 10bit
Rectification	Full wave
A-scan Screen Height	800% of screen height (Maximum)
Tunable Analog Gain	80dB
Max PRF	20kHz
Transmitter Voltage	20V~110V(50Ω load)
Pulse Type	Bipolar square wave
Pulse Width	30ns~1000ns, step as 5ns
Bandwidth	0.5MHz~20MHz(-3dB)
Filter	High-pass, low-pass, multiple narrow band-pass
Triggering	Encoder, time-based
Measurement Spot	Front/Peak
Readout	Amplitude; beam path; horizontal; depth
Measurement Resolution	0.5mm
Scan Mode	L/S/C/D –scan
Scan Length	≥15 meters
Scan Speed	≥30mm/s

Features:

Inspection Channels

38:128PR Phased Array module
Concurrent scanning of TOFD and Phased Array
Supports dual-array probes
2-channel TOFD; 2-channel conventional ultrasonic testing

The functionality of the HPA-620 offers a great satisfaction of users’ various demands.

Phased Array Module

Conventional butt weld inspection; Conventional butt weld inspection (with concurrent scanning of TOFD and Phased Array)
Conventional C-scan inspection for plates
Conventional inspection of bolts
Conventional corrosion inspection
TKY inspection

TOFD module

Procedure parameter setup; probe and wedge parameter setup

Users are able to calculate relevant parameters based on the probe and procedure parameters, including: PCS, scanning coverage, bottom coverage, beam included angles.

Display

The HPA-620 is fitted with a 10.4-inch industrial-grade TFT screen, with touchable operation, providing optimal displays under strong light and outdoors.

Procedure Design

Offering process simulation models, the HPA-620 can also build a model by importing objects’ dimensions via CAD software. Customize users’ dedicated inspection process and provide one-stop service for the full-range of solutions.

Scope:

Conventional Weld Inspection

Phased Array C-scan inspection of Composite materials

Inspection of Bolts and Screwed Pipes

Inspection of PE joints

Solution of Small-diameter Tube Weld Inspection
