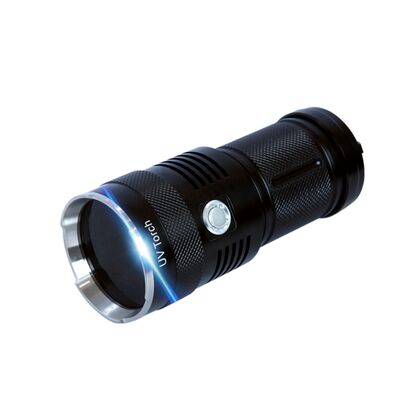

Pocket Lamp Type LED Ultraviolet Lamp High-Power 365nm Ultraviolet Band LED Lamp
1· Introduction
DG-70 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).
2. Main Application
1)Fluorescence Penetrate Testing
2)Fluorescence Magnetic Particle Flaw Detection
3)Fluorescence Leak Detection
Other Application
1)Oil Stain, Blot Testing
2)Special Gas, Oil and Gas Pipeline Testing
3)Fluorescence Reflection Detection for Special Materials
4)Criminal Investigation and Legal Medical Expert Survey
5)Paper Money Authentication, Jewel Appreciation
6)Agriculture, Foodstuff, Medical Treatment and other relevant industries.
3. Characteristic and Performance
1)HUATEC DG-70 adopts high-power 365nm Ultraviolet band LED Lamp
Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.
2)The lifetime of Lamp Beads reach up to 20000 hours, efficient,energy conservation and environmental protection.
3)Quick Start, can reach the maximum illuminance as soon as switch on.
4)Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
5)Cold light source makes cold operation, outputs the illuminance lasted and steadily.
6)Optical filter is black vitaglass.
7)High strength aviation aluminum alloy shell with anodize surface.
8)Enhance thermal design, can be used continuous for long time.
9)Configure dedicated high speed charger for each lamp.
10)Anti magnetic field interference function makes it possible to work in the strong magnetic field.
11)Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.
4. Technical Parameters
|
|
DG-70 |
| Lamp Beads |
NICHIA 365nm Ultraviolet band LED Lamp Beads |
| Lamp Bead Amount |
3 |
| Input Voltage |
3.7-4.2V |
| Output Power |
9W |
| Intensity of Ultraviolet Ray at 38cm Distance |
≥20000
uW/cm2
|
| Irradiated Area at 38cm Distance |
￠80mm |
| Diameter of Light Inlet Window |
￠50 |
| Battery Model |
ICR 18650 |
| Battery Capacity |
2600mAh |
| Number of Battery |
4 |
| Charging Time |
≥5H |
| Working Hours |
≥5H |
| Battery Life |
More than 500 time for fully charge and discharge |
| Outline Dimension |
A |
￠60 mm |
| B |
￠50 mm |
| L |
143 mm |
| Weight(including Battery) |
610g |

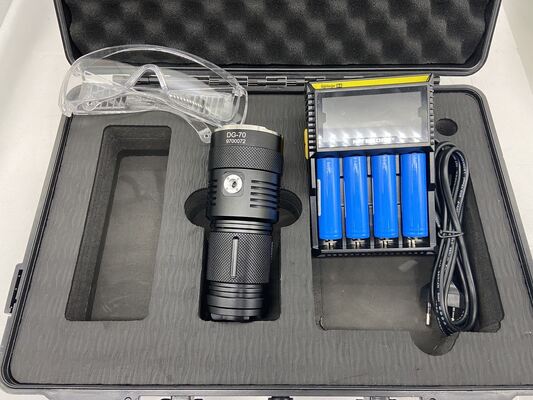

5. Configuration List
|
DG-70 |
| Main Device |
1 |
| Battery |
4 |
| Charger |
1 |
| Suit case |
1 |
| Operating Manual |
1 |
| Certification |
1 |
| Warranty Card |
1 |
| Packing List |
1 |
Optional Configuration
Protective Glass
Triangle Holder
