Ürün ayrıntıları:
|
| The large window: | >176000cd/m2 | The highlight window: | >600000cd/m2 |
|---|---|---|---|
| The whole machine power: | 90w | Capacitive touch dimmer: | Foot switch control |
| Vurgulamak: | LED radiographic film viewer,Industrial radiographic film viewer,Double Window radiographic film viewer |
||

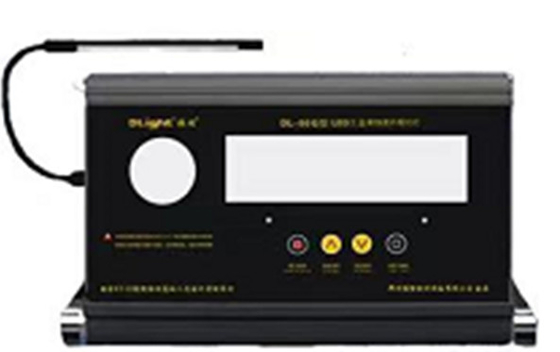

Double Window LED industrial radiographic film viewer
This series of products meet the GB/T19802-2005 "Non-Destructive Inspection Industrial Radiography" standard requirements. The HFV-50G film viewer is currently the only one in China that satisfies the NB/T47013.2-2015 "Nondestructive Test for Pressure Vessels" standard.

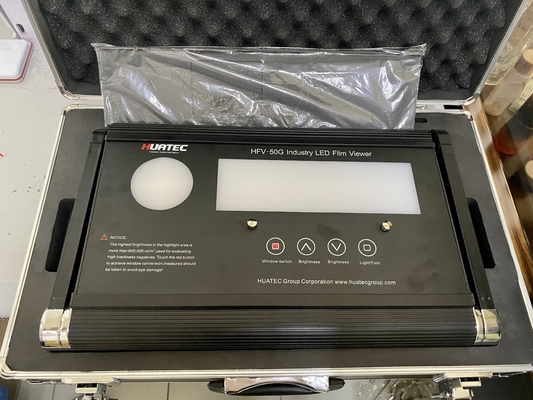

| HFV-50G |
Double Window Ultra Highlight type The large window is using Cree Highlight SMD LED Light Source,the highlight window is using LED surface light source. Maximum brightness:The large window>176000cd/m2 The highlight window>600000cd/m2 Window size: The large window:210 x 60 mm; The highlight window:Φ60mm The whole machine power: 90 w Appearance size: 360 x 200 x 40 mm The weight: 4.5kg Capacitive touch dimmer; Foot switch control. |
Basic Configuration
Film viewer 1set
Power supply adapter 1pcs
desk lamp 1pcs
Foot control switch 1pcs
Visor 1pcs
Power supply cable 1pcs
MP3 remoter 1pcs
Hard shell pack box 1pcs
Manual 1pcs
Calibration certificate 1pcs
